HVAC Building Systems: Principles and Construction

Numerous delineations of HVAC building systems are given, what’s HVAC? The HVAC system and the principle of the HVAC system, but not enough to clarify and detail, makes the anthology vague and not deeply understood. The following composition will present knowledge about the HVAC control system and the operating principle of the HVAC system.

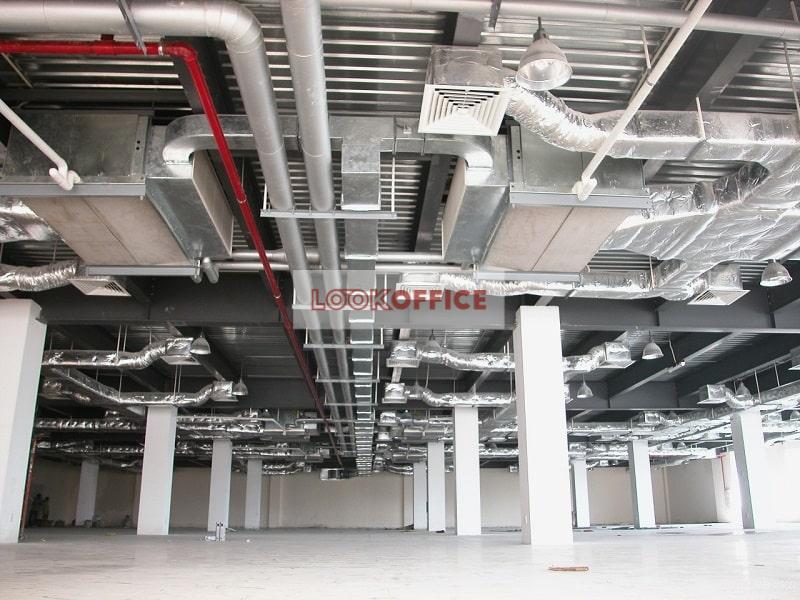

What’s HVAC? Construction and principle of operation of the HVAC building systems

What’s HVAC?

HVAC stands for Heating, Ventilating, and Air Conditioning.

An HVAC control system is a system that controls the temperature, moisture, and air quality in an inner or vehicle space. furnishing a respectable position of inner air quality and thermal comfort is needed for an HVAC system. The design of the system is grounded on the principles of heat transfer, thermodynamics, and fluid mechanics. The purpose of the HVAC system is to produce a space with the loftiest temperature, quality, and moisture.

Plays an important part in icing the climate in which the structure is comfortable and the old air is replaced by fresh air from the outdoors. HVAC systems are used in both marketable and domestic demesne.

Structure and working principle of HVAC system

• Air handling unit( AHU) whose function is to supply air and control the quality of air brought in from outdoors. inordinate moisture, odors and environmental pollutants when introduced will be adulterated or replaced with air from outdoors.
• In apartments, the kitchen or restroom position is frequently installed with ductwork to conduct odors or humidity.

Ventilation styles:

• Natural system A system of circulating air outside without the use of exhaust suckers, or other mechanical systems. The air is passed through the small articulation window.
• Some structures use the” mound effect” to get the stylish quantum of outside air in. This system takes veritably little energy, so occasionally the air quality may not be as anticipated.
• Artificial system( Ventilation by exhaust addict) This system uses exhaust suckers, tubes, and regulators to control the quality of air circulating in the structure.

Functions of the HVAC building systems

• As an important and necessary structure in the design, heating, ventilation, and air exertion systems have a close relationship with each other.
• The HVAC system has one important function To give stylish air quality for people in any environmental condition.

HVAC system
Take cold air

• The temperature in the air will be removed by the air exertion system with refrigerants similar to water, air, ice, chemicals, etc.
• Heat junking takes place through radiation, convection, or conduction.

The refrigeration system will use a reversing stopcock, which switches from cooling to heating by reversing the inflow of refrigerant when warm temperatures are demanded.

The introductory factors of a common central HVAC system are:

• Addict for air rotation and return air
• Air force pipe in which the tailwind from the addict is supplied to the conditioned space.
• Air outfit similar to the air force bay and return air bay.
• Return to the air passage or conduit in which the air returns from the conditioned space to the mixed gas chamber.
• The air outside the device.
• Mixed air chamber to admit the gas in the room and mix it with the outside air.
• Sludge section to remove dirt patches from mixed air.
• Heat exchangers similar to hot water coils, brume coils, evaporative refrigerants, or stupefied water coils add heat or remove heat from circulating air.
• Supplementary heating outfit similar to a natural gas furnace or electric heating element.
• Compress the air to compress the refrigerant vapor and pump the refrigerant around the system.
• Condensate to remove heat from the refrigerant vapor and condense it into a liquid.
• Addict to circulate outside air through air cooling
• Pump to circulate water through the water-cooled condenser; condensate water pump( CWP); and condensate water force( CWS) and vice versa( CWR).
• Pump to circulate hot water from the boiler through the hot water coils and return or circulate cold water from the bite through the stupefied and stupefied water coils.
• For the central system, water or a boiler is a central heating source.
• For the central system, a water bite is a central cooling source.
• For the central system, a cooling palace with a water-cooled condenser.
• Controls to start, stop, or regulate the inflow of air, water, brume, refrigerant, and electricity.

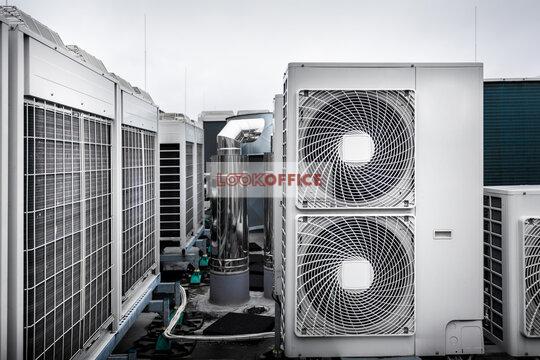

What do HVAC building systems include?

Heating

– A bias that aims to induce an advanced quantum of heat than the medium( warm) temperature for space is called a heating system. Heat generation is done by a central heating system
heart.
– The outfit that makes up a complete heating system includes
– outfit used to toast water, brume, and air in a central position Boiler, heat pump
Heat is transferred by convection and conduction by radiation. Fireplaces are operated through different energy sources similar as solid energy( coal, wood.), liquid energy( gasoline, oil painting.), gas( gas), and electric energy. Electric fireplaces are frequently used as provisory heat or heat pump systems.
Ventilation( Ventilation)
People always want to have stylish air quality to ensure the safety of health, especially in the current period, when the process of industrialization and modernization takes place like a” storm“. The birth of numerous artificial shops, and means of transportation. entails emigration into the living terrain of people.
people, causing serious consequences on their quality of life.
The preface of a ventilation system will contribute to air change by controlling environmental factors similar as temperature, and moisture or barring rudiments of odors, bank, and dust.
bacteria, CO2 to increase the oxygen content in the air.
In addition, ventilation is the rotation of air between the outside and inside of the structure.

Heating in HVAC is used to induce heat( warmth) in structures or marketable centers, generally, this is done by a central heating system.

The general structure of the heating system in HVAC includes:

• Boilers
• Heater or heat pump: Used to heat water, steam, or possibly air in a central location such as a furnace room in a house, or a mechanical room in a large building. The hot steam can be transferred by convection, conduction, or radiation.

The ventilation system in HVAC

The HVAC ventilation system’s job will be to change or replace the airflow in any space to control the temperature or to remove any combination of moisture, odors, smoke, heat, and dust. , or bacteria in the air or CO2 and supplemental Oxygen.

In addition, the ventilation system in HVAC also includes the exchange of air with the outside as well as the circulation of air in the building.

The ventilation system in HVAC is considered one of the very important factors to maintain the quality of the air inside each area in the buildings.

The HVAC building systems in GMP

The HVAC (Heating, Ventilation, and Air-conditioning) system is a system that generates different levels of cleanliness based on GMP cleanroom standards. The HVAC system controls and controls the concentration of dust particles in the room, creates a pressure difference between the clean room and the outside environment, and adjusts the temperature and humidity to be stable within the allowable range. respond to the number of gas exchange times so that people work in the best clean area. The HVAC system must ensure the basic conditions for the entire clean room work in the factory.

To meet GMP standards, factories, and production facilities need to fully meet the standards for building factories and workshops to ensure the quality of finished products.

Although GMP standards are quite strict, they are also applied flexibly to suit each condition, size, and type of business, rather than forcing businesses to follow a common set of rules.

The HVAC system in GMP is extremely important, it directly affects the operation of the production machine. Therefore, everything needs to be strictly and seriously managed.

The HVAC system is installed simultaneously with the module system to supply and extract air for clean room areas, production areas, and micro-organisms. The structure of the HVAC system includes:

• AHU airflow treatment block: The function of the fresh air intake, air heat exchange, and pressurization into the clean room area ensures the criteria of temperature, pressure, and number of gas exchanges.
• CDU outdoor unit: Includes refrigerant gas compressor for clean room air conditioning process.
• System of ductwork, adjustment valve, sound absorption: To circulate clean room air for the system, adjust the pressure in each room of each return air outlet, reducing noise for the system. Everything is covered with insulation.
• Air supply mouth: In the clean room system, the air supply mouths from AHU to each clean room are fitted with HEPA 13 filters, to ensure the required air cleanliness.
  The return mouth has a coarse filter attached, following the return pipe to the AHU.
